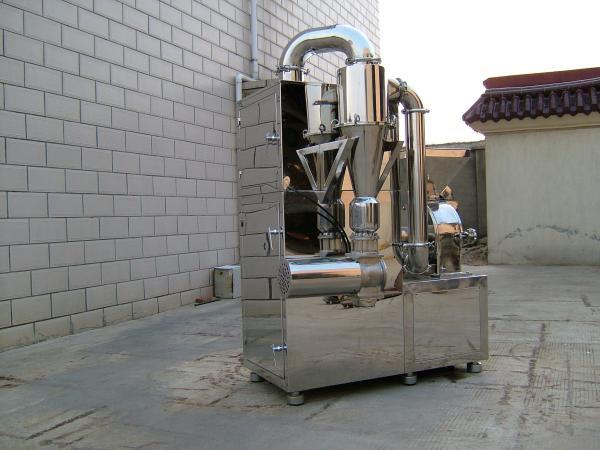

Universal Ultra Fine Powder Grinding Machine For Medicine / Chemical / Foodstuff

Universal Impact Ultrafine Grinding Mill For 40-120 Mesh,Used In Medicine/Chemical/Foodstuff/Resin Powder

Powder grinding machine Features

1. Wide application and large handling capacity.

2. Simple and compact construction; smooth and steady running.

3. The material grinding process is fast and reliable, grinding fitness is adjustable.

4. The surface of the multifunctional grinding machine is smooth, easy to clean.

Powder grinding machine Application

1. All kinds of grains: sesame, walnut, rice, black rice, soybean, mung bean, red bean, peanut, lotus seed, corn, sorghum, barley, buckwheat, oat, etc;

2. Spice: chili, pepper, nutmeg, cinnamon, anise, basil, Cardamom, Clove, Coriander, Cumin, Mint, Mustard, Parsley,Rosemary, Turmeric etc.

3. Dry medical materials: Chinese yam, almond, poria cocos, red dates, gorgon fruit, wolfberry, CoixSeed, hawthorn, fleece-flower root, red bean, donkey-hide gelatin, frankincense, dodder, angelica sinensis, radix codonopsis, etc;

4. Other materials: ordinary chemical materials, etc.

Products Description

Working Method

It makes use of the high-speed relative movement of the movable fluted disc and the fixed fluted disc to crush the materials through the comprehensive effect of striking and friction of the fluted disc as well as the mutual striking of the materials.Since it features a simple structure,firm and stable operation and good crushing effect,the crushed matterials can be discharged directly apertures.Besides,the whole machine is made of stainless steel.Theinner surface of the enclosure becomes smooth through processing,thus changing the powder residual phenomenon dus to the coarse inner surface of the previous models.As a result,the production of medicine,food and chemical products can better conform to the state standard and the GMP requirements.

Technical Parameter

Model	Prodution Capacity(kg/h)	Spindle Speed(r/min)	Size of Input Granules(mm)	Grinding Fineness(Fineness)	Grinding Motor Power(KW)	Vacuum Motor Power(KW)	Machine Dimensions(mm)
20B	60-150	4500	6	60-120	5.5	1.5	1100×600×1650
30B	100-300	3800	10	60-120	7.5	1.5	1200×650×1650
40B	160-800	3400	12	60-120	11	1.5	1400×700×231

Schematic
